Reveal Base – Architectural Aluminum Trims – 5/8″ Drywall

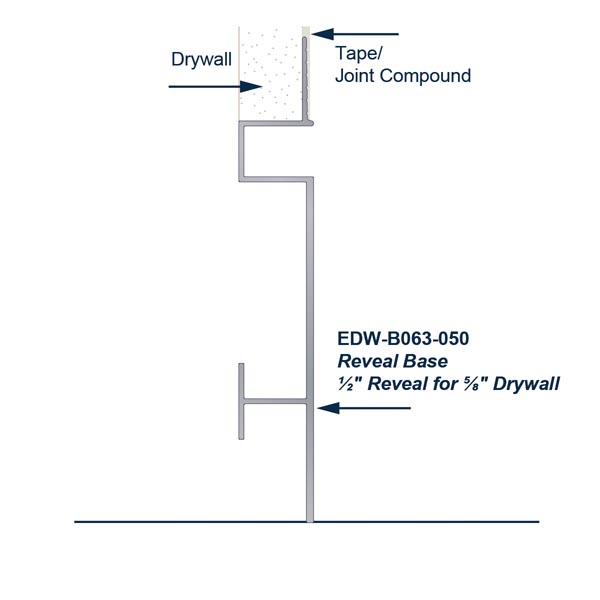

Drywall reveal bases are used as both decorative elements and to conceal unevenness or gaps where walls and floors converge. A reveal base creates strong, crisp outlines in drywall, adding depth and dimension. When used in contrast with wall material, they create an impactful design element; when used in blended colors, they create minimalist shadow lines. Aluminum Base Plates are commonly used in architectural, millwork, store fixture and display industries for giving walls a finished look.

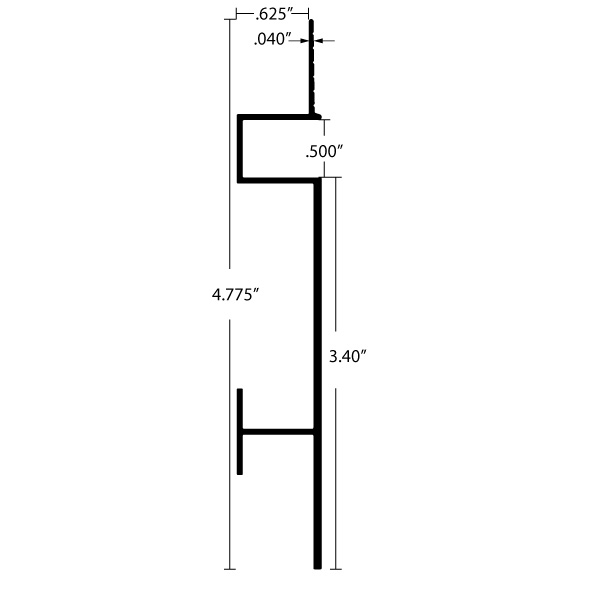

Eagle Aluminum’s EDW-B050 drywall reveal bases are made from 6063-T5 aluminum which has a smooth surface and is ideally structured for anodized finishing, making it a preferred material for aluminum trim extrusions. These architectural drywall reveal bases for 5/8″ drywall feature a .50″ reveal and are stocked in 10′ (120″) lengths in Clear Satin Anodized and Mill Finish. A variety of color anodized and powder coat finishes are available upon request to protect the beauty and longevity of your drywall design projects.
Summary of Key Features:
- Stocked in 10′ lengths (120 inches)
- Stocked in Clear Satin Anodized (EA) and Mill Finish (MF)
- Available reveal widths:
.50″ reveal, EDW-B050-050 - Alloy/Temper: 6063-T5 Aluminum
- Specialty finishes available upon request
- Commonly used by drywall installers, contractors in commercial spaces, interior designers and architects
