U Channel Reveal – Architectural Trims – 5/8″ Drywall
Aluminum drywall U reveal trims are used to form visually appealing horizontal and vertical patterns between drywall panels. This architectural reveal bead for .625″ drywall is available in four reveal widths to provide straight, even lines between drywall panels, crafting a sense of depth and enhancing the aesthetic of any design. Aluminum U reveals offer design flexibility and are commonly used in applications such as covering seams, creating visual separation, and producing the look of “trimless” doors.
Eagle Aluminum’s EDW-U063 U Channel Reveals are made from 6063-T5 aluminum, an ideal material for aluminum trim extrusions due to its smooth surface and acceptance of anodized finishing. Available with .50″, .625″, .75″ and 1.0″ reveals, these architectural reveal beads are stocked in 10′ (120″) lengths in Clear Satin Anodized and Mill Finish. A variety of color anodized and powder coat finishes are available upon request to enhance the designs you envision with these architectural reveal beads for drywall.
Summary of Key Features:
- Stocked in 10′ lengths (120 inches)
- Stocked in Clear Satin Anodized (EA) and Mill Finish (MF)

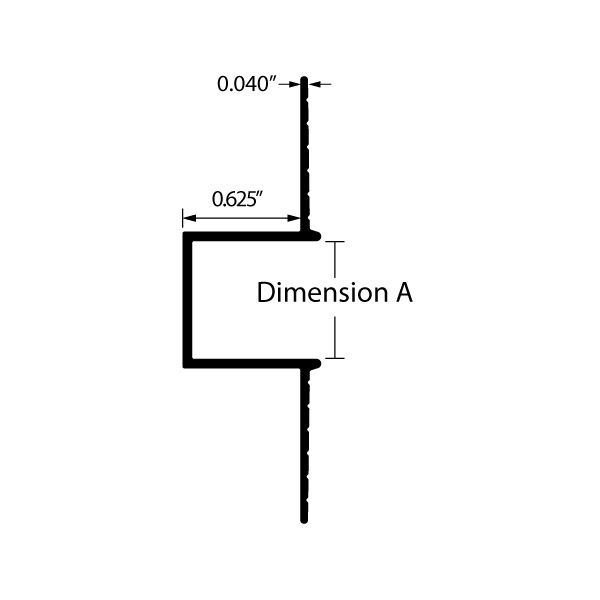

- Available with 4 reveal widths:

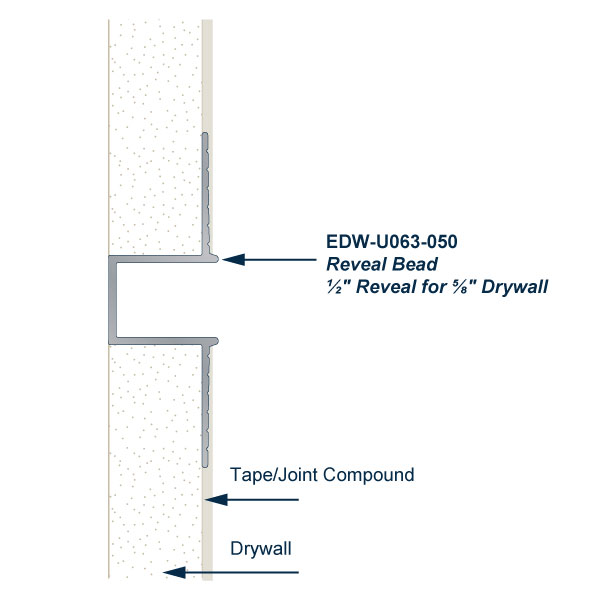

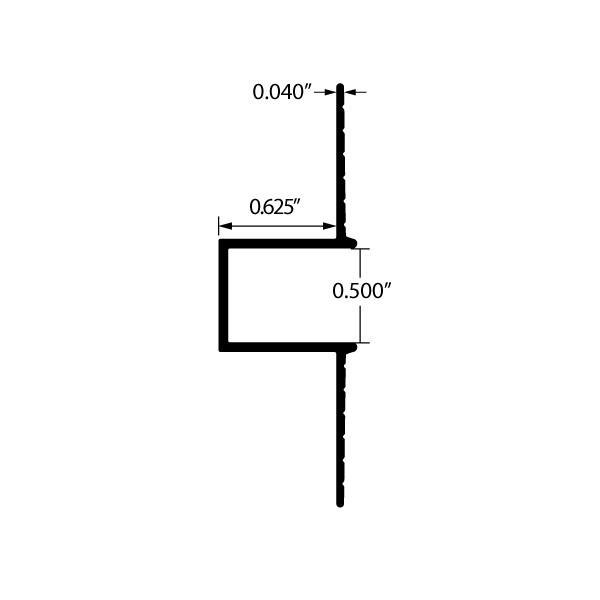

.50″ reveal, EDW-U063-050 (Dimension A = .50″)

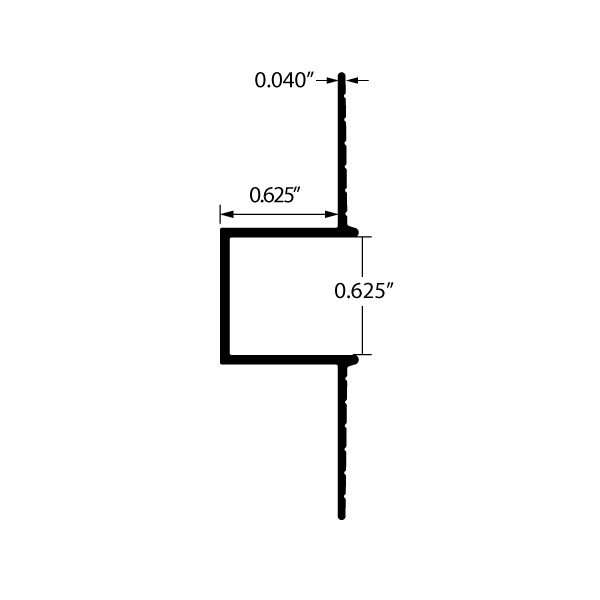

.625″ reveal, EDW-U063-063 (Dimension A = .625″)

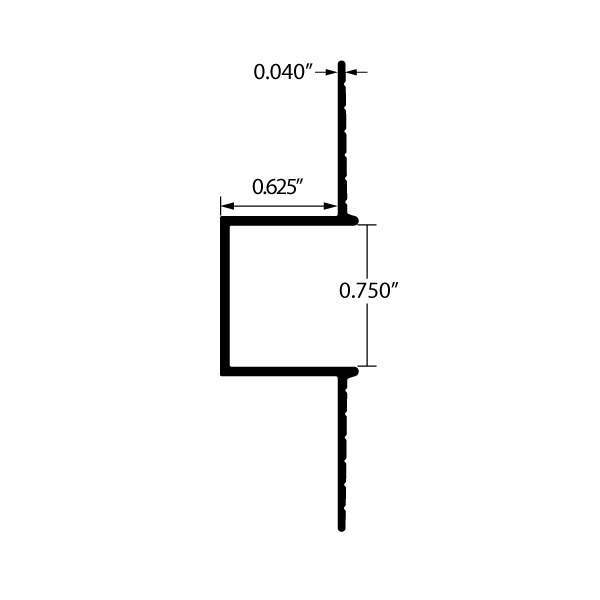

.75″ reveal, EDW-U063-075 (Dimension A = .75″)
1.00″ reveal, EDW-U063-100 (Dimension A = 1.0″) - Alloy/Temper: 6063-T5 Aluminum
- Specialty finishes available upon request
- Commonly used by drywall installers, contractors in commercial spaces, interior designers and architects
