Millwork Reveal Base Plates, or reveal bases, are used as both decorative elements and to conceal unevenness or gaps where walls and floors converge. When used in contrast with wall material, they create an impactful design element; when used in blended colors, they create minimalist shadow lines. Aluminum Reveal Bases are commonly used in architectural, millwork, store fixture and display industries for giving walls a finished look.

Eagle Aluminum’s Millwork EMT-29 Reveal Bases are made from 6063-T5 aluminum which has a smooth surface and is ideally structured for anodized finishing, making it a preferred material for aluminum trim extrusions. Available in both 1.00″ and .75″ profile depths, these architectural 4″ millwork reveal bases are stocked in 10′ (120″) lengths in Clear Satin Anodized and Mill Finish. A variety of color anodized and powder coat finishes are available upon request to enhance the beauty of your wall panel material and craft your distinct vision. When panels are installed with Z clip ZCP-375 (.25″ stand-off), these aluminum 4″ millwork reveal bases accommodate .50″ or .75″ panels.

Summary of Key Features:

• This Architectural Millwork Aluminum Base Trim is stocked in 10′ lengths (120 inches)
• Stocked in Clear Satin Anodized (EA) and Mill Finish (MF)

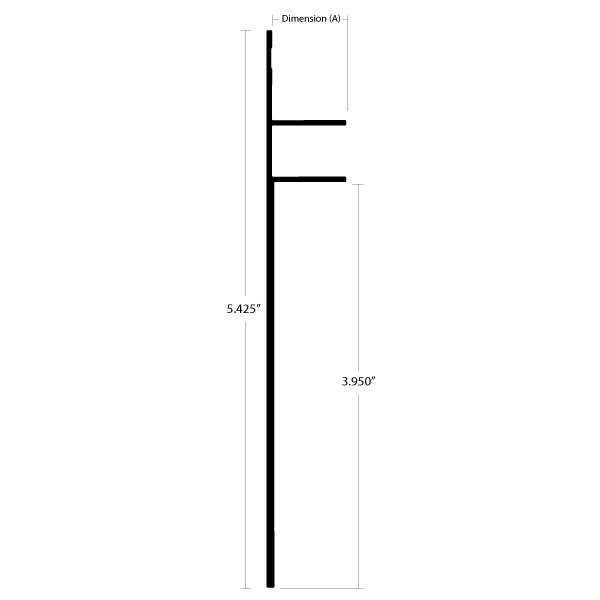

• Available in 2 Profile depths:
  • 1.00″ Profile depth, EMT-29100 (Dimension A = 1.00″)
  • .75″ Profile depth, EMT-29075 (Dimension A = .75″)
• Alloy/Temper: 6063-T5 Aluminum
• Specialty finishes available upon request
• Z Clip recommended for panel hanging ZCP-375
• Commonly used in the architectural, construction, millwork, store fixture and display industries
• Comparable to MWRB100400 and MWRB75400
