F Reveal Bead- Architectural Trims – 1/2″ Drywall

F Reveal Bead- Architectural Trims – 1/2″ Drywall

This drywall F reveal bead is available in four reveal widths to provide a clean, sharp edge when drywall panels meet a ceiling, a door jam, or other finish material in the same plane. When used in harmony with the finished wall colors, they create minimalist shadow lines; when used in contrast with wall material, drywall F channel reveals produce a stunning design element. Aluminum F Reveal channels are commonly used in architectural applications such as ceiling to wall transitions, creating visual separation between materials, and producing the look of “trimless” doors.

Eagle Aluminum’s Millwork EDW-F050 F Reveal channels are made from 6063-T5 aluminum which has a smooth surface and is ideally structured for anodized finishing, making it an ideal material for aluminum trim extrusions. Available with .50″, .625″, .75″ and 1.0″ reveals, these architectural reveal beads are stocked in 10′ (120″) lengths in Clear Satin Anodized and Mill Finish. A variety of color anodized and powder coat finishes are available upon request to enhance the beauty of your designs and help you craft your distinct vision.

Summary of Key Features:

• Stocked in 10′ lengths (120 inches)
• Stocked in Clear Satin Anodized (EA) and Mill Finish (MF)

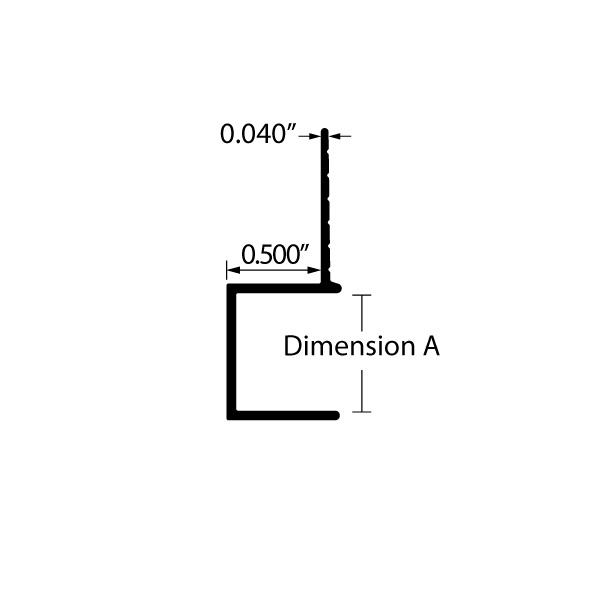

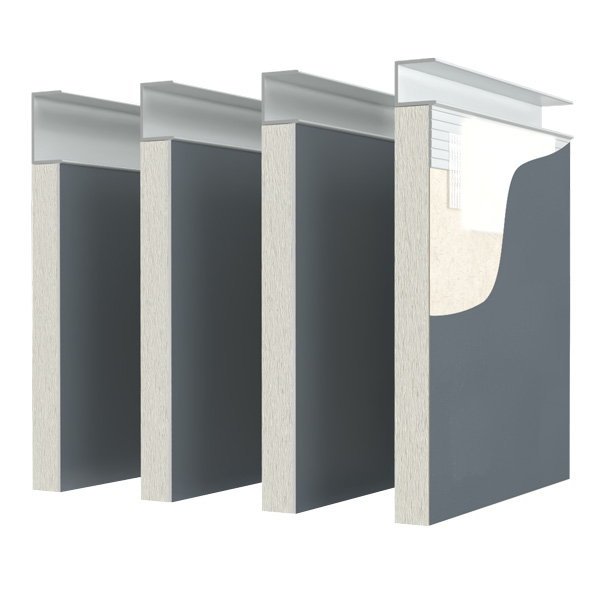

• Available with 4 reveal widths:

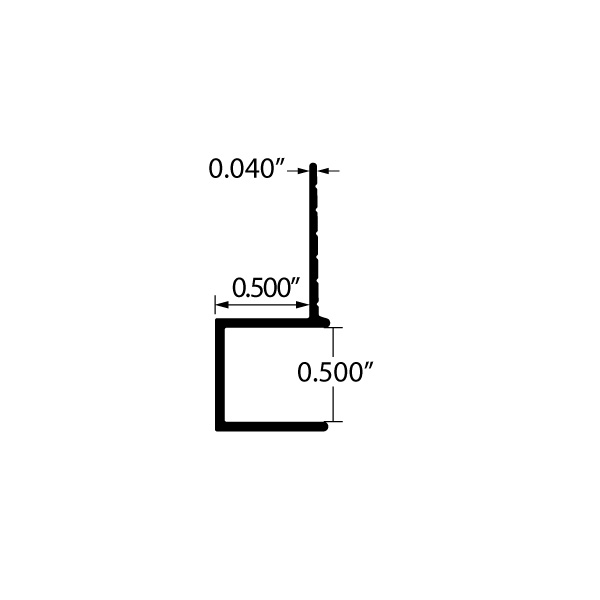

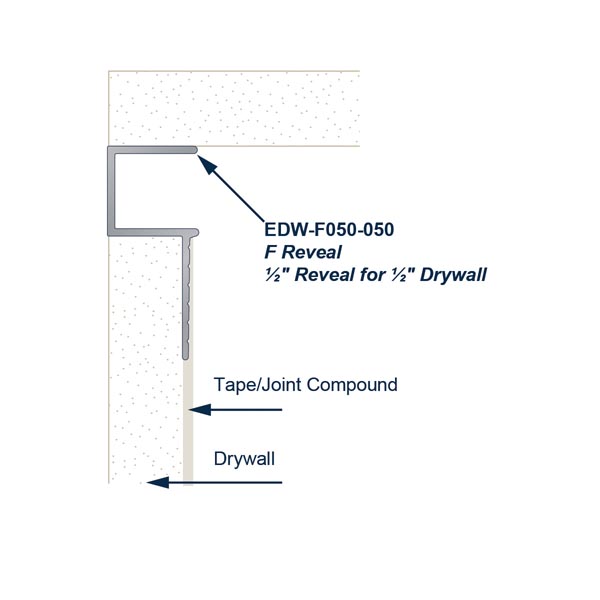

  .50″ reveal, EDW-F050-050 (Dimension A = .50″)

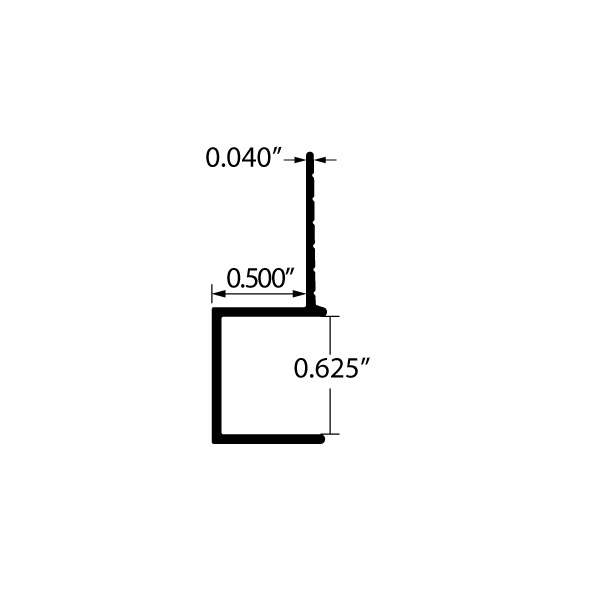

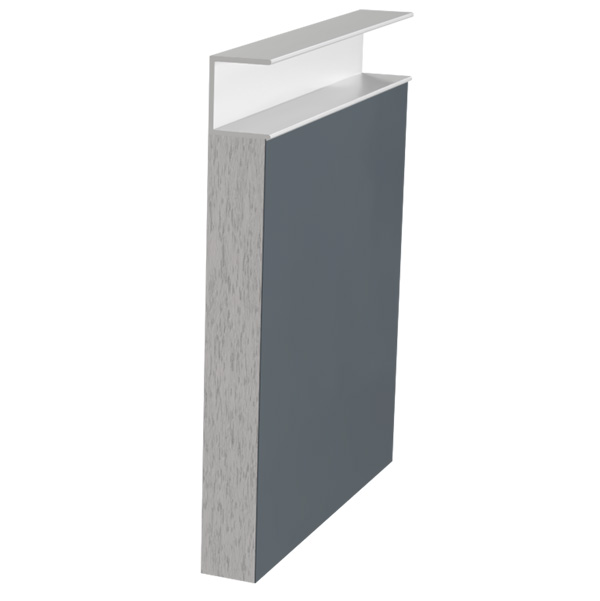

  .625″ reveal, EDW-F050-063 (Dimension A = .625″)
  .75″ reveal, EDW-F050-075 (Dimension A = .75″)
  1.00″ reveal, EDW-F050-100 (Dimension A = 1.0″)
• Alloy/Temper: 6063-T5 Aluminum
• Specialty finishes available upon request
• Commonly used by drywall installers, contractors in commercial spaces, interior designers and architects.
