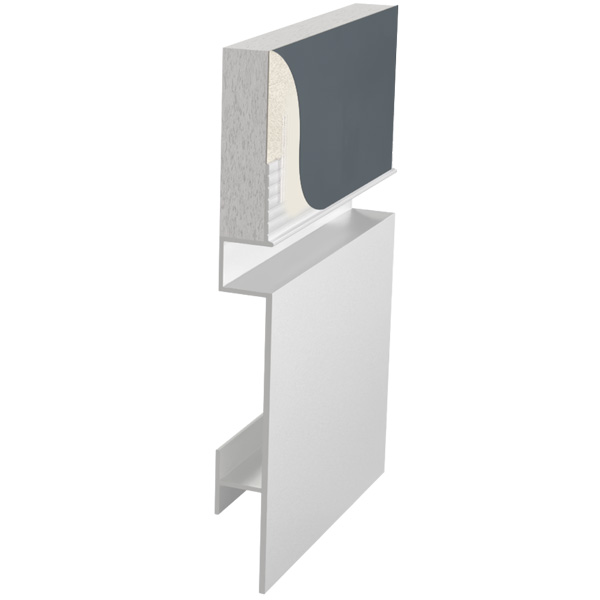

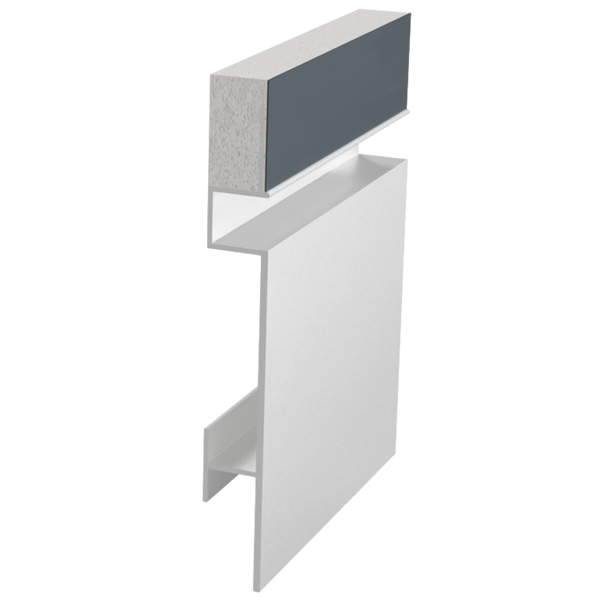

Drywall reveal bases are used as both decorative elements and to conceal unevenness or gaps where walls and floors converge. A reveal base creates strong, crisp outlines in drywall, adding depth and dimension. When used in contrast with wall material, they create an impactful design element; when used in blended colors, they create minimalist shadow lines. Aluminum drywall reveal bases are commonly used in high traffic commercial settings for giving walls a finished look with lasting durability.

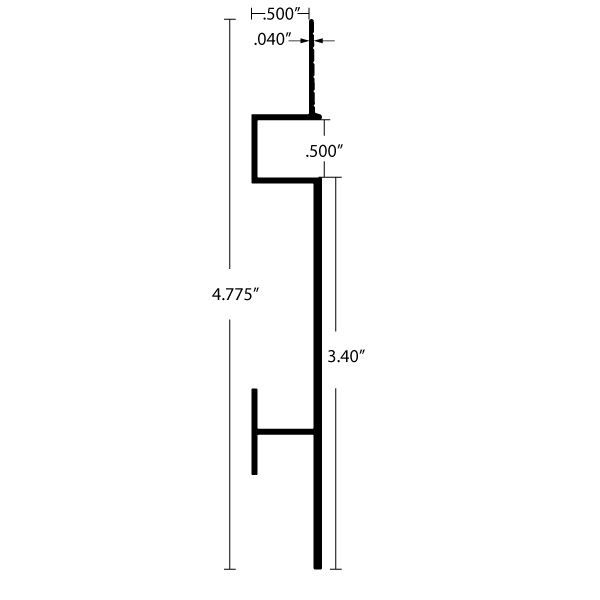

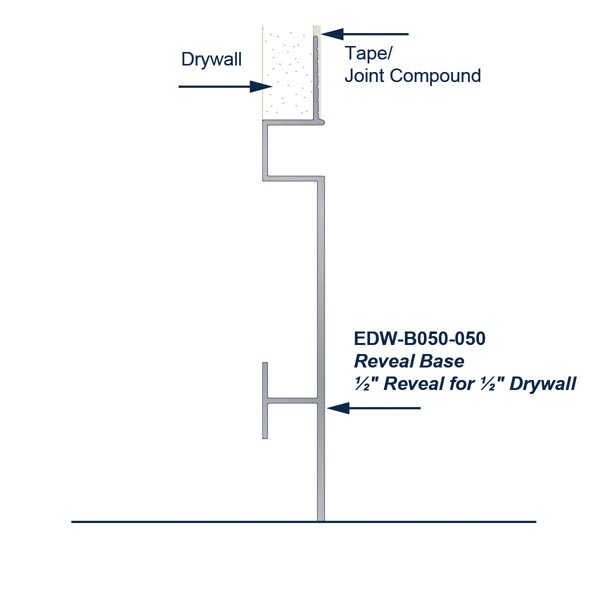

Eagle Aluminum’s EDW-B050 drywall reveal bases are made from 6063-T5 aluminum which has a smooth surface and is ideally structured for anodized finishing, making it a preferred material for aluminum trim extrusions. These architectural drywall reveal bases for 1/2″ drywall feature a .50″ reveal and are stocked in 10′ (120″) lengths in Clear Satin Anodized and Mill Finish. A variety of color anodized and powder coat finishes are available upon request to enhance the beauty and longevity of your drywall design projects.

Summary of Key Features:

• Stocked in 10′ lengths (120 inches)
• Stocked in Clear Satin Anodized (EA) and Mill Finish (MF)
• Available reveal widths:
  .50″ reveal, EDW-B050-050
• Alloy/Temper: 6063-T5 Aluminum
• Specialty finishes available upon request
• Commonly used by drywall installers, contractors in commercial spaces, interior designers and architects
