Flanged Outside Corner Guard – Architectural Aluminum Trims – Wallcovering

Flanged Outside Corner Guard – Architectural Aluminum Trims – Wallcovering

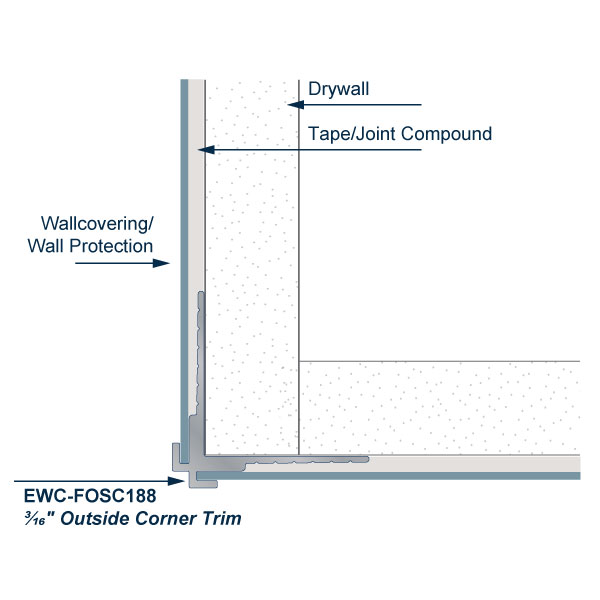

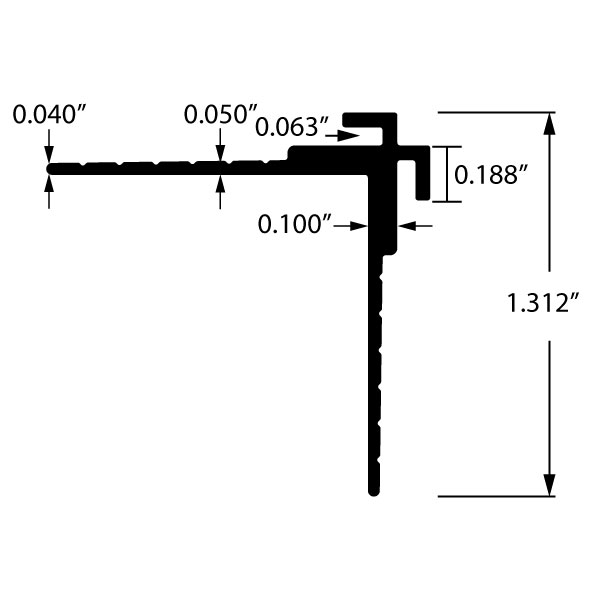

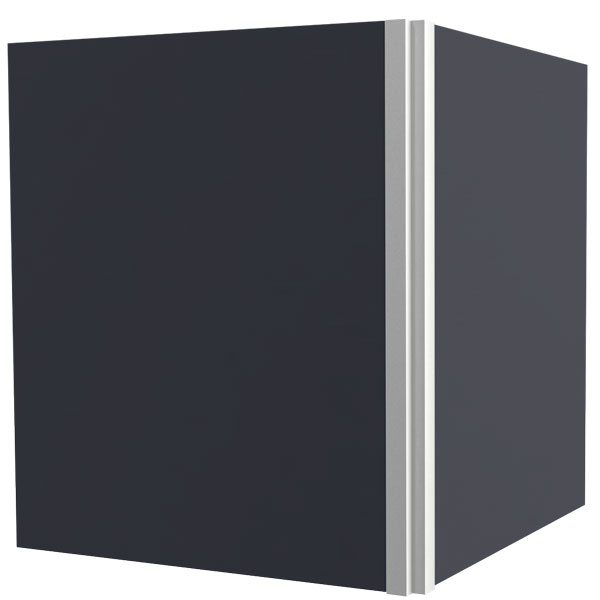

This Flanged Outside Corner Guards provides a clean and polished look for outside corners and features a .188″ return key to protect the edges of commercial wallcovering panels up to .0625″ thick. Architectural aluminum outside corner reveal trims are used to create a reveal corner while protecting and concealing the outer edge of wallcovering materials. Aluminum outside corner guards are commonly used in hospitals, schools, community centers, and other locations where durability is key due to high traffic and potential for wear and tear.

Eagle Aluminum’s EWC-FOSC188 Flanged Outside Corner Reveals are made from 6063-T5 aluminum which has a smooth surface and is ideally structured for anodized finishing, making it a preferred material for aluminum trim extrusions. These wallcovering trims with flanged outside corners are stocked in 10′ (120″) lengths in Clear Satin Anodized and Mill Finish. A variety of color anodized and powder coat finishes are available upon request to enhance the beauty of your wall panel material and craft your distinct vision.

Summary of Key Features:

• Stocked in 10′ lengths (120 inches)
• Stocked in Clear Satin Anodized (EA) and Mill Finish (MF)
• Alloy/Temper: 6063-T5 Aluminum
• Specialty finishes available upon request
• Commonly used in the architectural, construction, medical settings, store fixture and display industries
